Soft Close Clip On Conceal Hinge

Open degree: 95°

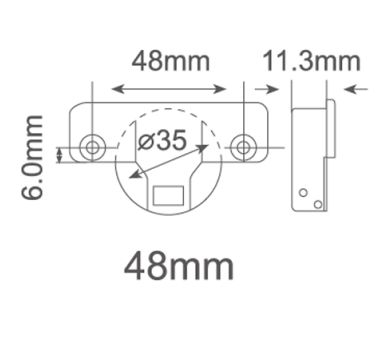

Height of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Distance from door edge to the cup (K): 3-7mm
Recommend door thickness: 14-23mm

• RH-293A-F:

  Full Overlay 4 holes

• RH-293A-H:

  Half Overlay 4 holes

• RH-293A-I:

  Inset 4 holes
