135° Slide On Conceal Hinge

Open degree: 135°

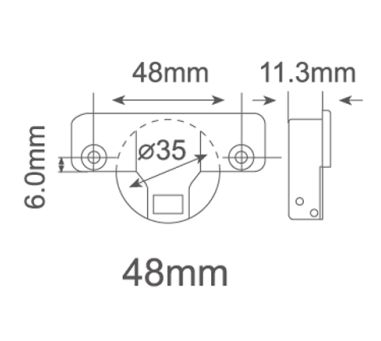

Height of hinge cup: 11.3mm
Diameter of hinge cup: 35mm

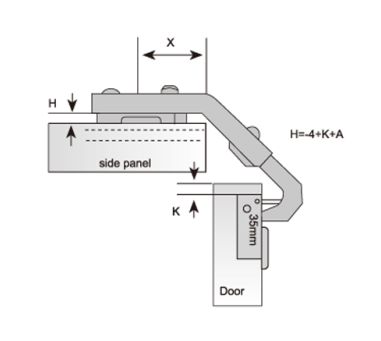

Distance from door edge to the cup (K): 3-7mm
Recommend door thickness: 14-23mm

• RH-135-61:

  135 degree
