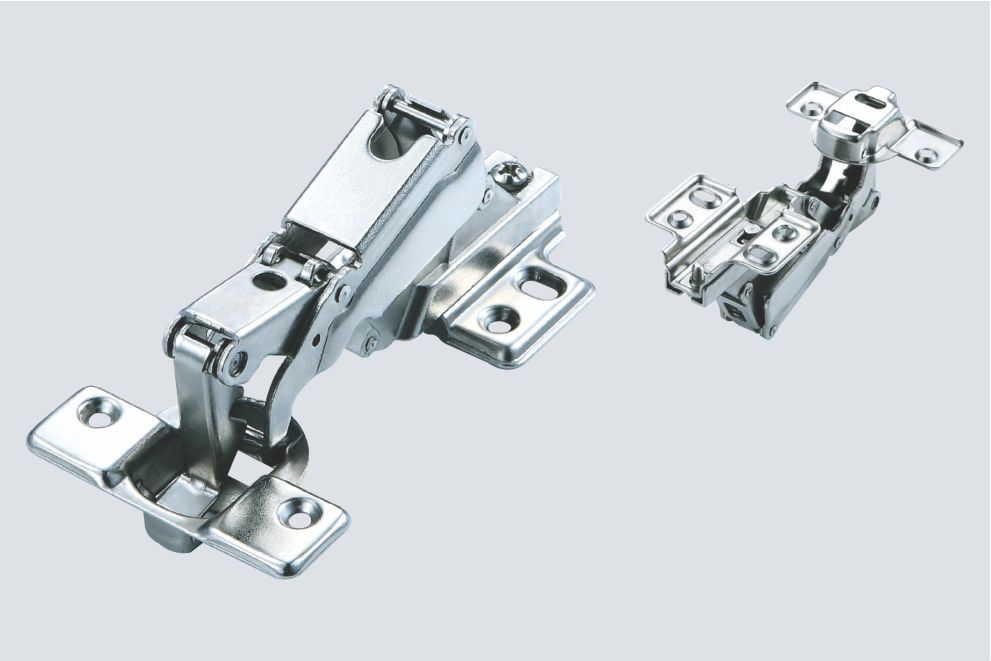

165° Slide On Conceal Hinge

Open degree: 165°

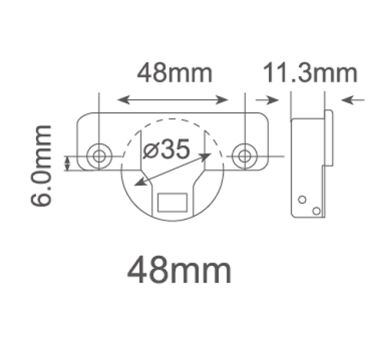

Height of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Distance from door edge to the cup (K): 3-7mm
Recommend door thickness: 14-23mm

• RH-165-61F:

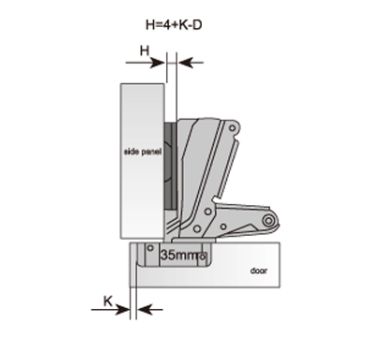

  Full overlay 4 holes

• RH-165-61H:

  Half overlay 4 holes

• RH-165-61I:

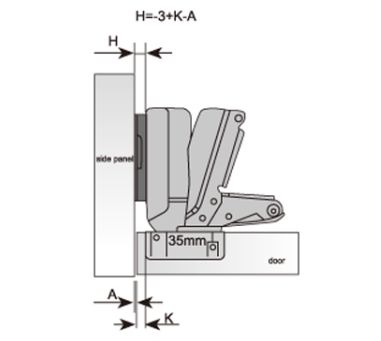

  Inset 4 holes
