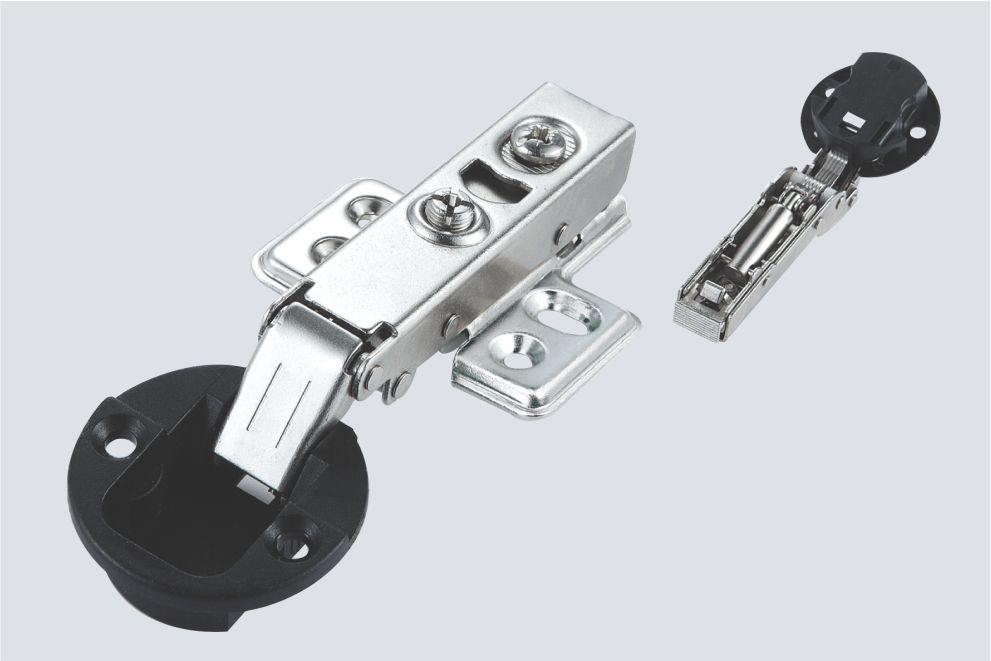

Soft Close Clip On Conceal Hinge For Glass

Open degree: 105°
Height of hinge cup: 35mm
Distance from door edge to the cup (K): 3-7mm
Recommend door thickness: 4-7mm

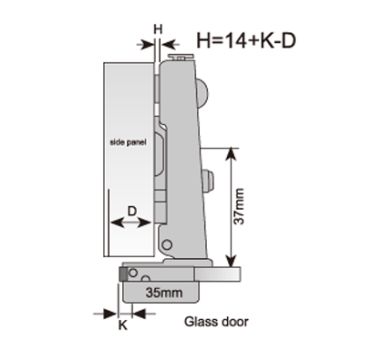

• RH-593F:

  Full overlay 4 holes

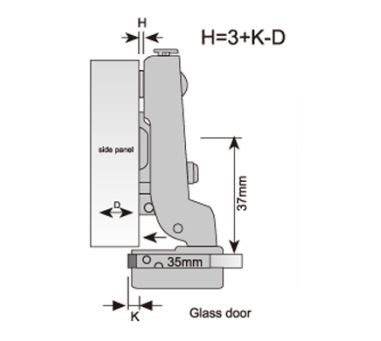

• RH-593H:

  Half overlay 4 holes

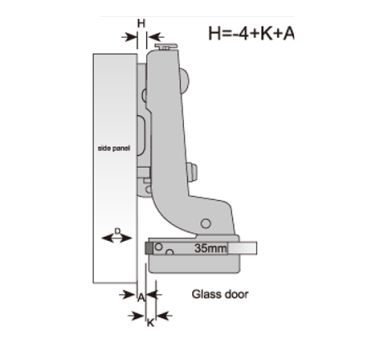

• RH-593I:

  Inset 4 holes
